Features:

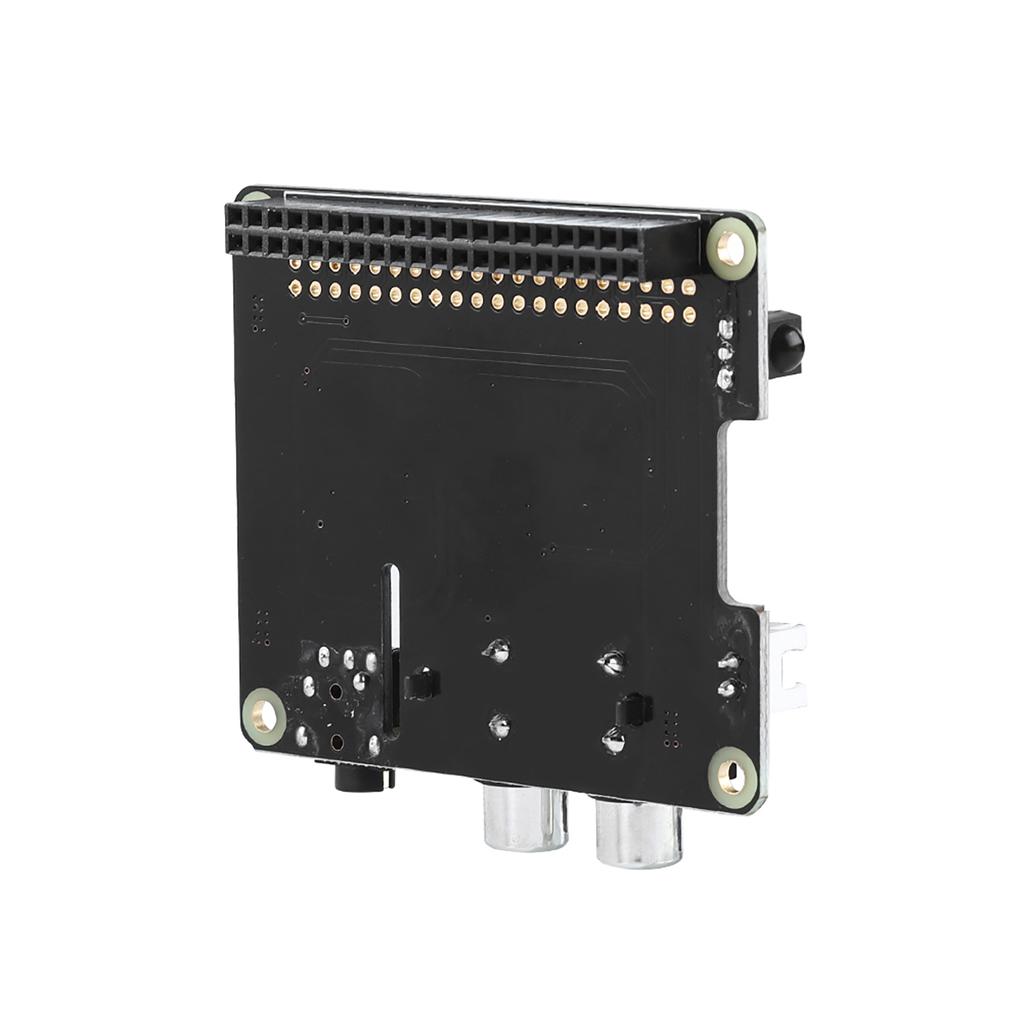

1.With DAC All-function PCM5122 chip and I2S Input, X920 DAC+ board is a perfect PiFi DAC+ HIFI Full-HD o expansion board for Raspberry Pi 3 Model B 2B B+.
2.After using X920 board, User can coordinate with the broadcast system (such as Volumio, Runeo, OSMC, XMBC(Kodi), MOODE etc.) to set up your own HIFI player network.
3.X920 is available with RCA, 3.5mm phone jack output connectors and built in IR receiver (Vishay TSOP34838).
4.Full-HD o: up to 24-bit192kHz playback and Class leading o (112db SNR, and -93db THD) function, Integrated hardware volume control with TI"s LP5907 Ultralow-Noise voltage regulator for optimal o performance.
5.Powered by for Raspberry Pi, no external power requirements, Conforms to the for Raspberry Pi hardware-attached-on-top (HAT) specification.
Specification:
For Raspberry Pi I2S Input (LRCK - GPIO19, BCK - GPIO18, DATA - GPIO21, GND)
Output Ports: 1 x 3.5mm phone jack, 2 x RCA connectors
Analog o output level: 2.0VRMS
ResolutionSampling Rate: upto 24bit 192KHz (for Raspberry Pi I2S)
IR receiver: GPIO17, 38KHz
Operating System:
Moode o Player, OSMC, Openelec, Raspbian Jessie, Volumio, Pi Core Player, Runeo
Support: Volumio, Runeo, OSMC, XMBC(Kodi), MOODE etc.
Full-HD o: up to 24-bit192kHz playback
Built in ophile TI Burr Brown DAC (TI PCM5122)
Class leading o: 112db SNR, and -93db THD
Integrated hardware volume control
TI"s LP5907 Ultralow-Noise voltage regulator for optimal o performance
Built in IR receiver :Vishay TSOP34838)
Available with RCA and 3.5mm phone jack output connectors
Powered by for Raspberry Pi, no external power requirements
Conforms to the for Raspberry Pi hardware-attached-on-top (HAT) specification
Access to GPIO pins on HAT
Packing List:
1 x Expansion Board
1 x
I
nstallation Package
.
