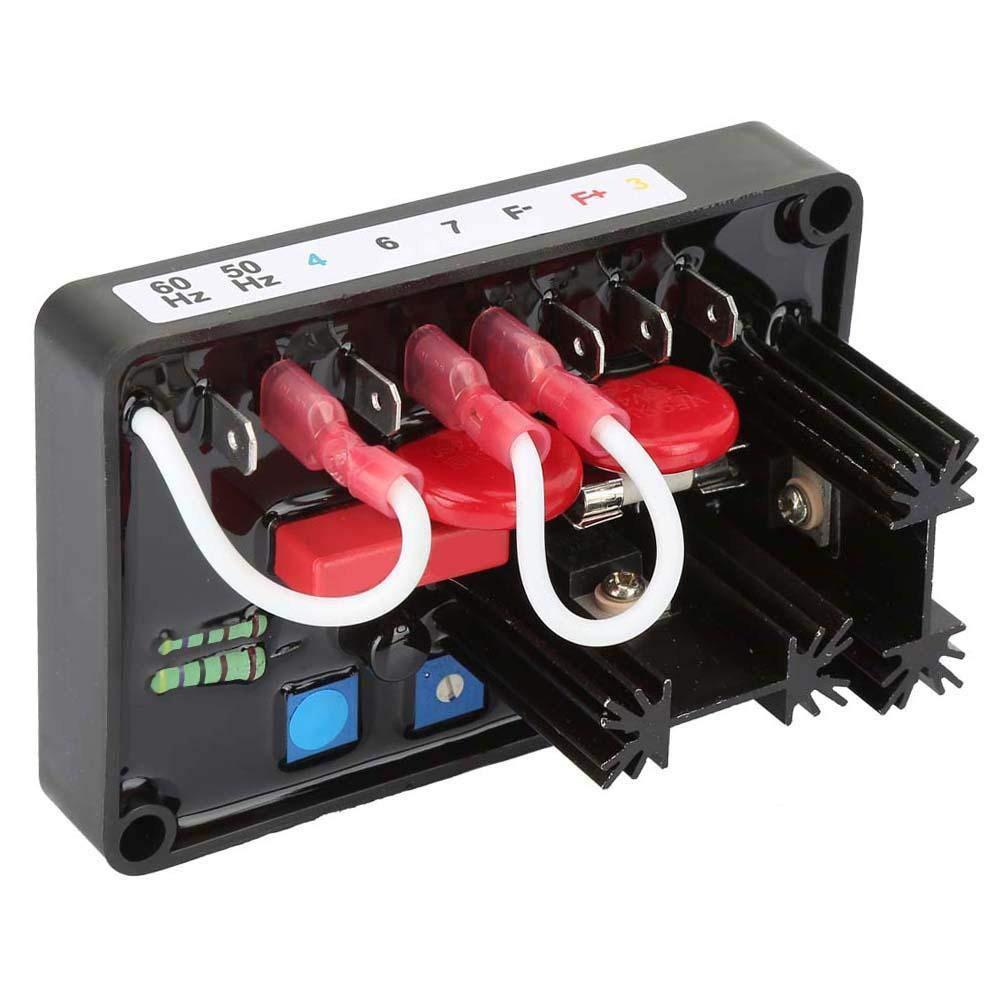

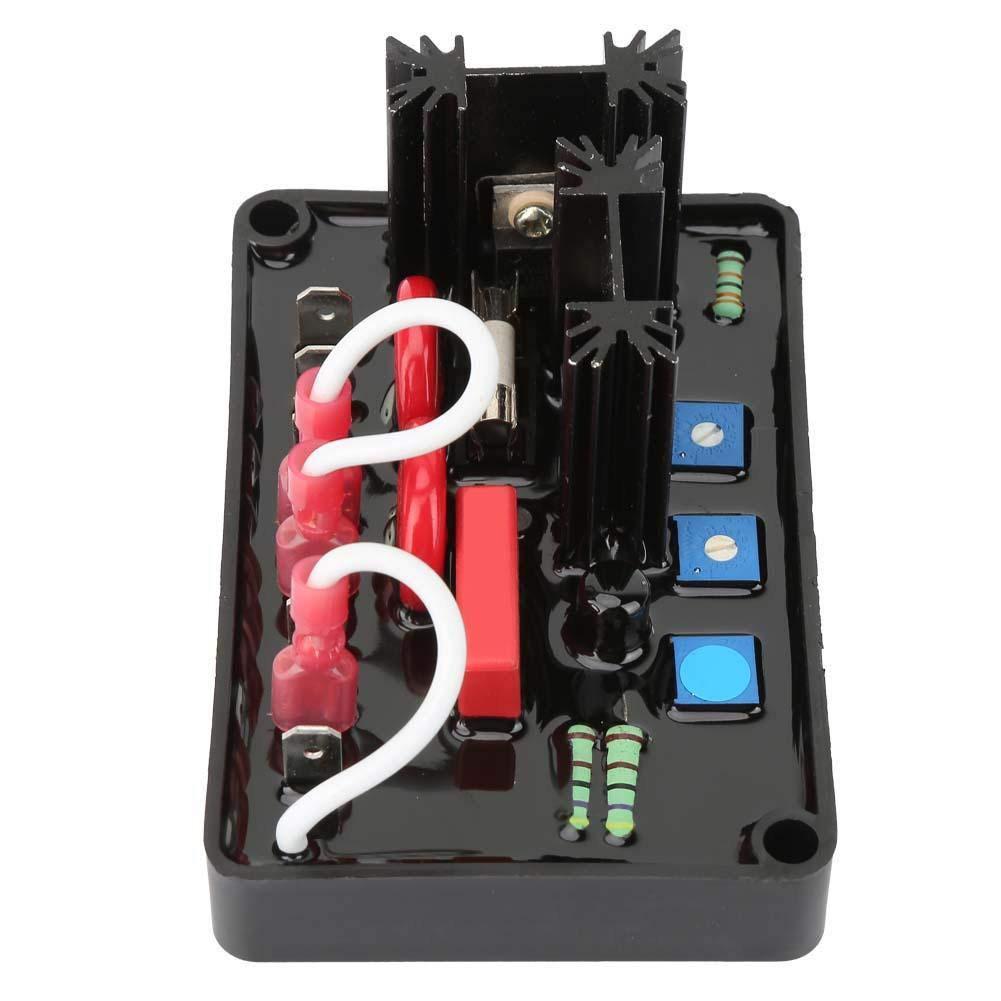

AVR AVC63-4 Input 190-240VAC 4A Replacement Automatic Voltage Regulator

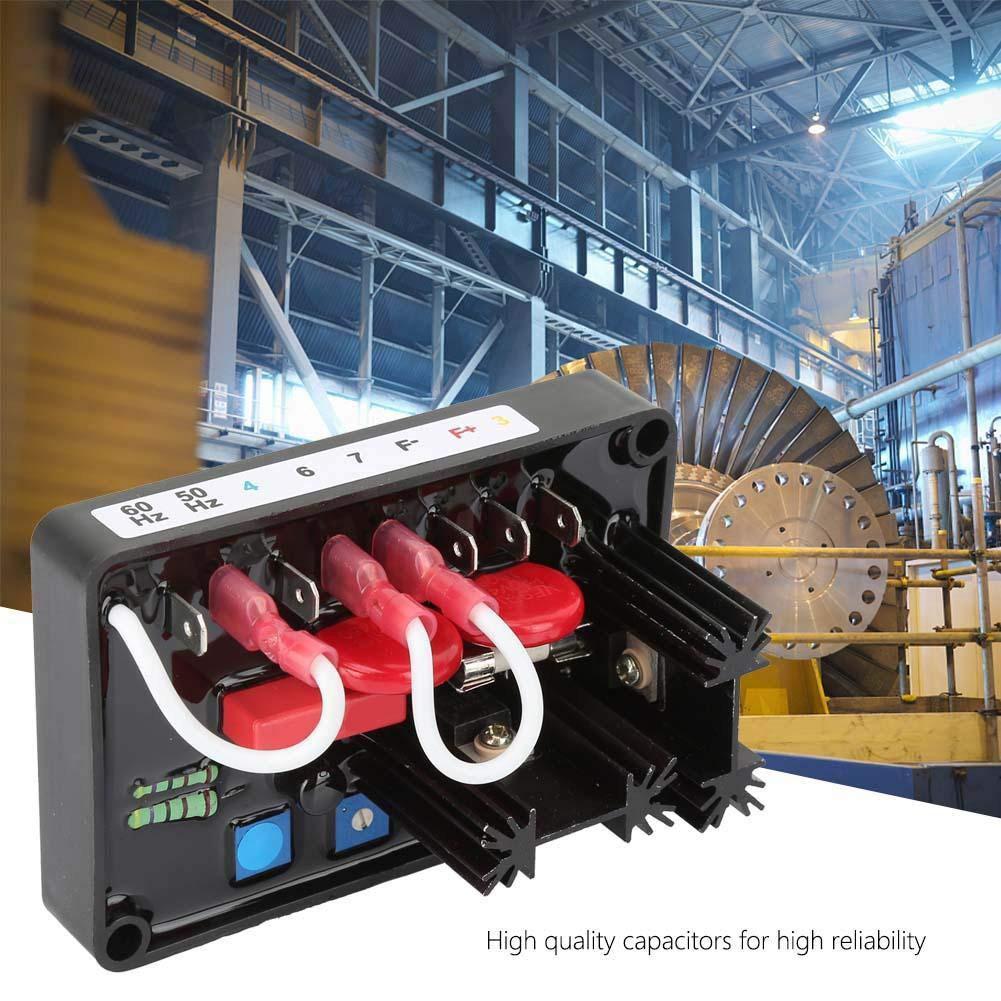

Features: brand new high quality Made of high quality material, AVR AVC63-4 Input 190-240VAC 4A Replacement Automatic Voltage Regulator. The AVC63-4 and AVC63-4D voltage regulators feature enhanced technology and are designed for use with 50/60Hz brushless generators. This is the engine voltage regulator, AVR, rectifier. The maximum voltage at 220VAC input is 73VDC. High-quality capacitors with high reliability. External voltage regulation: ±10% with 2kΩ 1W trimmer. Low frequency protection The preset inflection point of the 60Hz is 54-61Hz, and the default inflection point of the 50Hz is 45-51Hz. Each maximum power consumption is 8W. This is a packaged automatic electronic voltage regulator that controls the output of the generator by regulating the current into the field of the exciter. EMI suppression Internal electromagnetic interference filtering. Product parameters: Model: AVR AVC63-4 Voltage: 190-240VAC Frequency: 50/60Hz, for Jumper optional Maximum voltage: 73VDC@220VAC input Current Continuous: 3.5A, Intermittent 7A for 10 seconds (52/105VDC) Resistance min: 15 ohms, max 100 ohms Accumulated residual voltage of the voltage at the avr terminal: >5VAC Voltage regulation: <±1% 4% engine regulation Operating temperature: -40°C to +60°C Storage temperature: -65°C to +85°C External voltage adjustment: ±10% with 2k ohm 1 watt trimmer EMI suppression internal electromagnetic interference filtering Package Included: 1 * AVC63-4 automatic voltage regulator 1 * English instruction manual Note: 1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2.Please allow slight manual measurement deviation for the data.
