Feature:

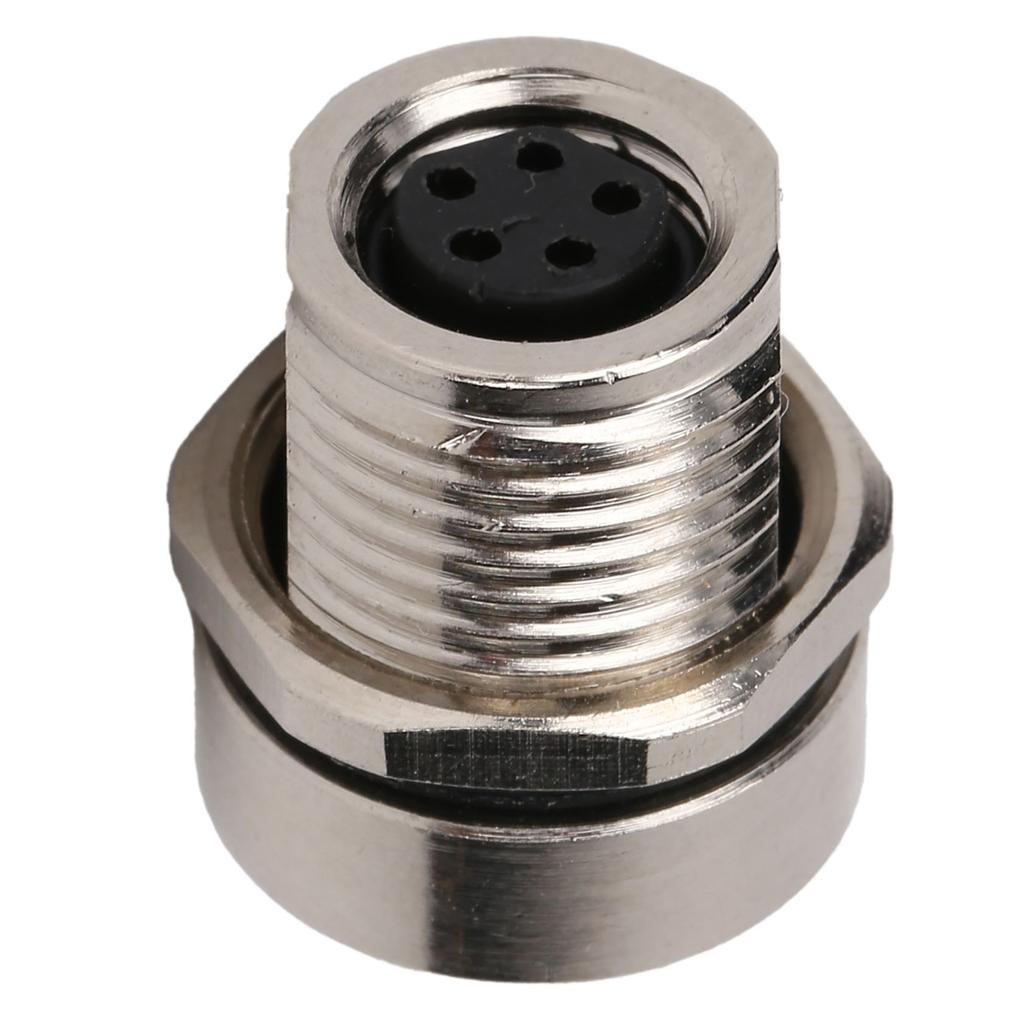

1. Panel mounted socket M8 connector, nickel plated brass housing material with excellent 360 degrees full shielding.
2. Conform to IEC 61076‑2‑101 Industry 4.0 agreement, NEMA2000 standard, stable and excellent performance.
3. Waterproof rating IP67, 5pin plug adapter design, gold‑plated brass pin material, not easy to corrosion.
4. 4A Rated current and can support ≥500 times plug and unplug, epoxy resin design of the sealing material.
5. AC/DC250V Rated voltage, M8‑F‑S5 panel mounted socket design, easy and convenient for installation.
Specification:
Item Type: Panel Mounted Socket Connector
Material: Brass
Material: Brass nickel plated
Sealing Material: Epoxy resin
Pin Material: Brass gold plated
Material: PA66
Molding Material: TPU/PVC
Rated Current: 4A
Rated Voltage: AC/DC250V
Conductor Specification: AWG22, 0.34mm²
Contact Impedance: ≤5mΩ
Plugging Times: ≥500 times
Pin Number: 5
Standard: IEC61076-2-101
Applicable Temperature: -25℃~+80℃
Waterproof Rating: IP67
Hole Opening Size: Approx. 10.1 x 12mm / 0.4 x 0.47in
Package List:
1 x Connector
