Wide Voltage 12V 18V 20V Brushless Motor Drive Board Adjustable Potentiometer Speed One Key Japanese Power Tools

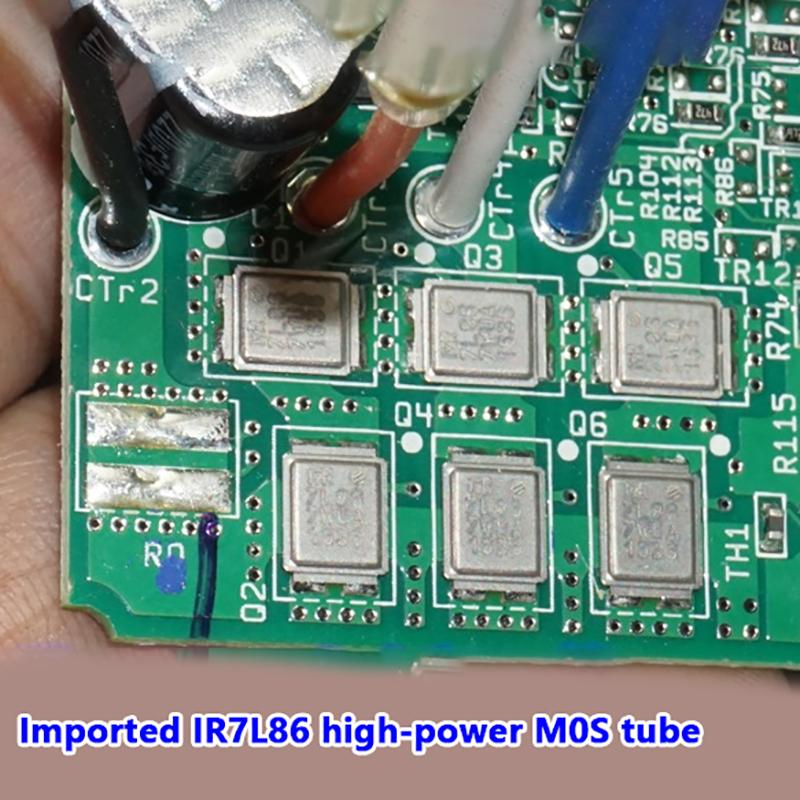

Specifications: Material: Other Packaging: 1PC Size: As shown Description: High-end brand electric tools, driving workmanship materials are very good, gold seal low heat high power MOS tube, this kind of tube is more than twice as expensive as the ordinary tube, the German overtone has been removed before This tube is used for the integrated motor drive full seal. The driving chip is DRV91670 from Texas Instruments. The original drive used an 18V battery, and the over-discharge protection was inside the original battery. The actual test of the brushless drive can support a wide voltage range of 10-20V. The definition of the drive wiring has been researched. You can change the speed of the potentiometer. The drive supports forward and reverse rotation. The Hall positioning is offset by a certain angle. Otherwise, there is an error in the no-load current of forward and reverse operation. For the wiring definition, see the introduction box icon. . The potentiometers, switches and motors used in the picture modification must be purchased by yourself, and the wiring diagram is for reference only. It is suitable for various occasions and has strong compatibility. At the same time, it protects the motor and drive plate to be more stable and lasting. Using brushless motor technology, the operation is more stable and quiet, the efficiency is higher, and the service life is longer. It is small and easy to install, does not occupy space, and is convenient for users to use. It can be widely used in smart home equipment, aircraft models, electric tools, industrial automation equipment and other fields. Note: Due to manual measurement, please allow an error of 1-3mm. Please ensure that you do not mind before bidding. Due to the differences between different monitors, the images may not reflect the actual color of the item. Please refer to the actual image received. Thank you very much. The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
