Label:Yes
Height screw bracket: 25 mm
Article no.: 16370
4 Styles:18-30mm/30-60mm/60-80mm/60-140mm/140-220mm
Material: Polypropylene

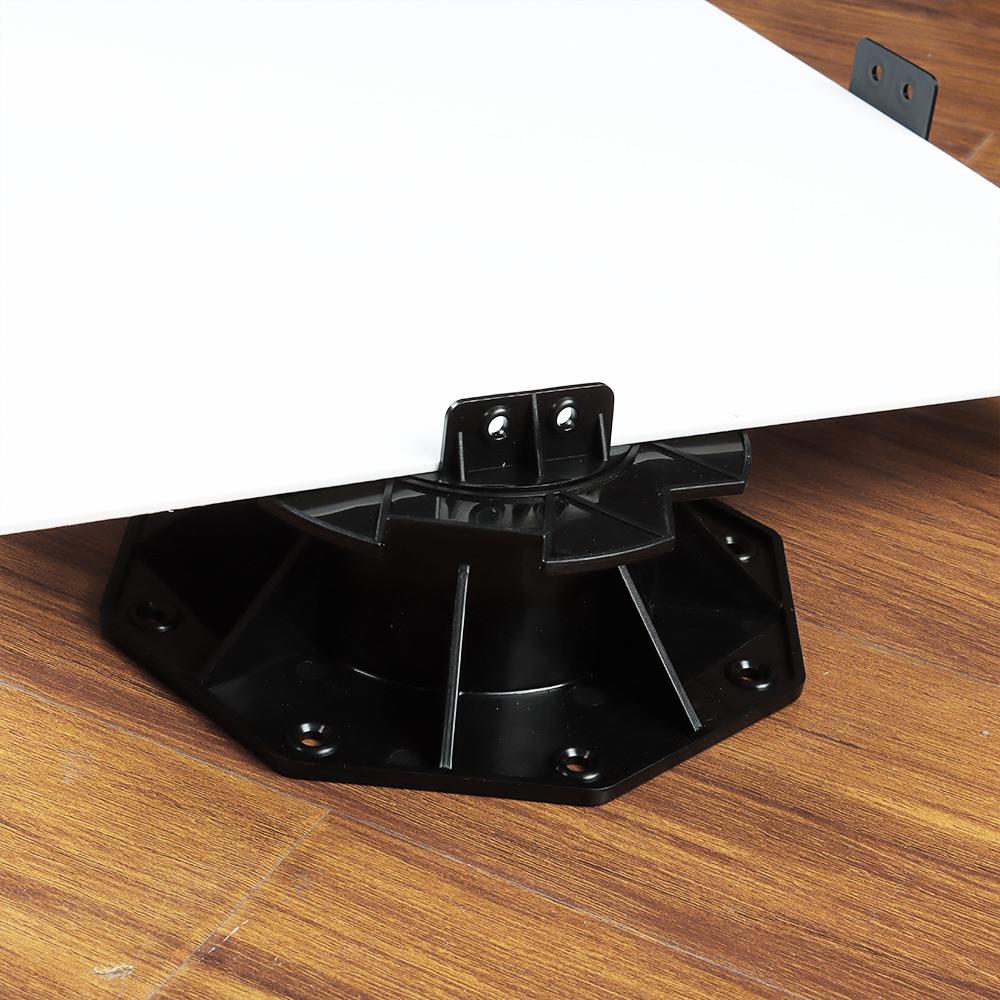

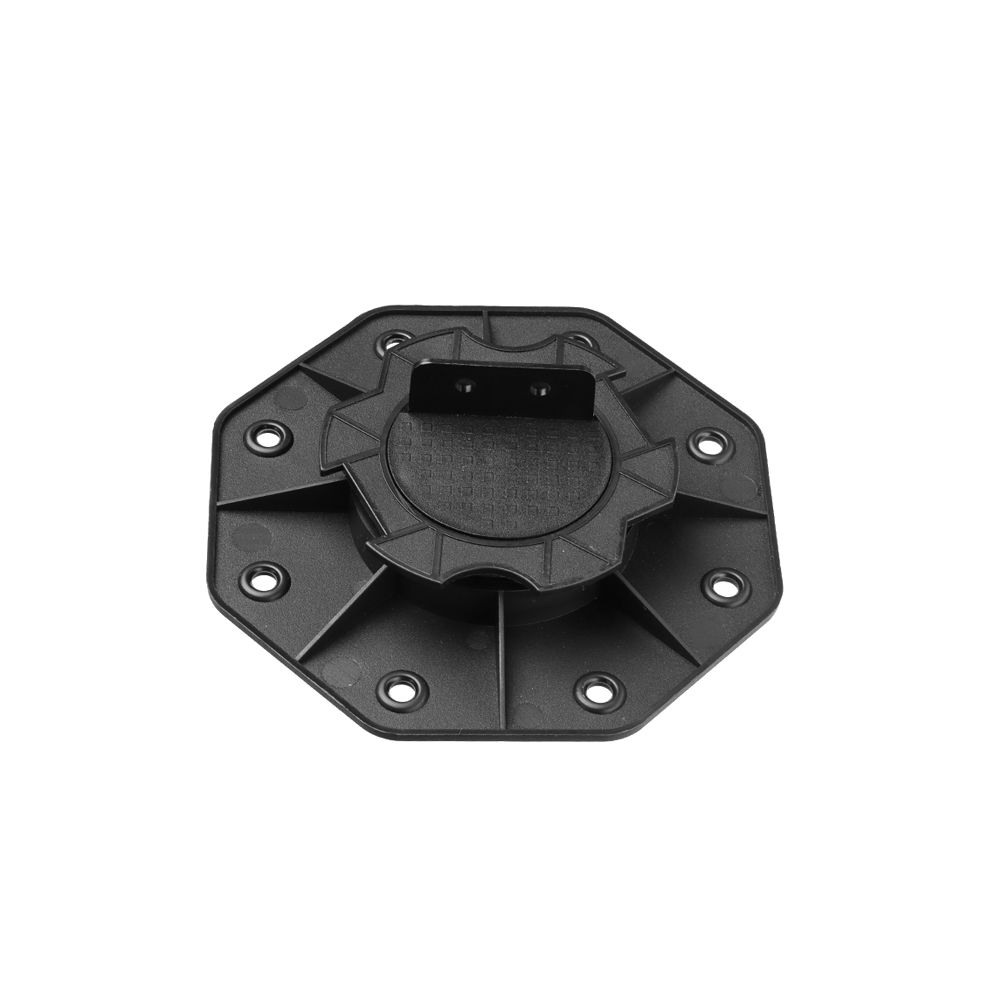

Name: Pedestal Bearing
Quantity: 1 pc
Available in different sizes:
Size Diameter Adjustment range Load per pedestal Load per m²
S 160mm 18 - 30mm 200 - 300kg 1,000kg
M 160mm 30 - 60mm 400 - 500kg 2,000kg
L 160mm 60-80mm 400-500kg 2000kg
XL 160mm 60 - 140mm 400 - 500kg 2,000kg
XXL 160mm 140 - 220mm 400 - 500kg 2,000kg
Features:
adjustable pedestal - available in different sizes
Ideal for a simple terrace construction, especially when differences in height have to be compensated.
Our pedestals form support points for the substructure of your WPC or wooden terrace and make it easy to align terrace boards in the balance. The adjustable feet made of robust polypropylene are weather-resistant at both low and high temperatures. Pre-drilled holes on the stilts make it easier to screw the respective substructure into place, while large contact surfaces ensure a secure footing.
The recommended spacing of the pedestals depends on the type of substructure. With WPC this is approx. 50 cm, with aluminum approx. 60 cm.
Details:
Suitable for substructures made of WPC, wood and aluminium
Stepless thread adjustment -> depending on the model between 18 - 220 mm
Safe stand thanks to the large contact surface
Optimum pressure distribution, high load capacity and quick assembly
Adjustment also possible under load when installed (exception size S)
Perfect water drainage and good ventilation
Provides cavity to hide pipes and wires
Made of weather-resistant and robust polypropylene
Package inlcuded: 1 pc x Pedestal Bearing
