This is a combination set. It has 6 tools for the 2021 fox dhx2 and X2 shocks. All tools are made in the USA. They are CNC machined out of 6061 aluminum. This is all the clamps and all the pinned sockets you need to rebuild the fox 2021 X2 shock.
First we have shock clamp for the 2021 FOX float dh x2 and X2. The clamp fits the 3/8" shaft and the inner air sleeve. The 3/8 will not fit older versions of the x2 shocks. Its made for a precision fit. We left plenty of material so there is a lot of clearance when using the 3/8 shaft clamp, and we made it .440 thick to fit into the tight spaces. It is thin enough to fit the 2021 version shock. It is the same fit as fox tool number 803-01-690
Next we have a wrench for the negative air seal head. Its 9.5" long and has chamfered corners so its easy on your hands. It has a 3/8" square drive so you can torque it to spec, just line the torque wrench up to the line (perpendicular to the wrench) and your good to go. This is the same fit as fox part number 398-00-419. This tool fits 2016-2021 x2 and dhx2 float shocks.

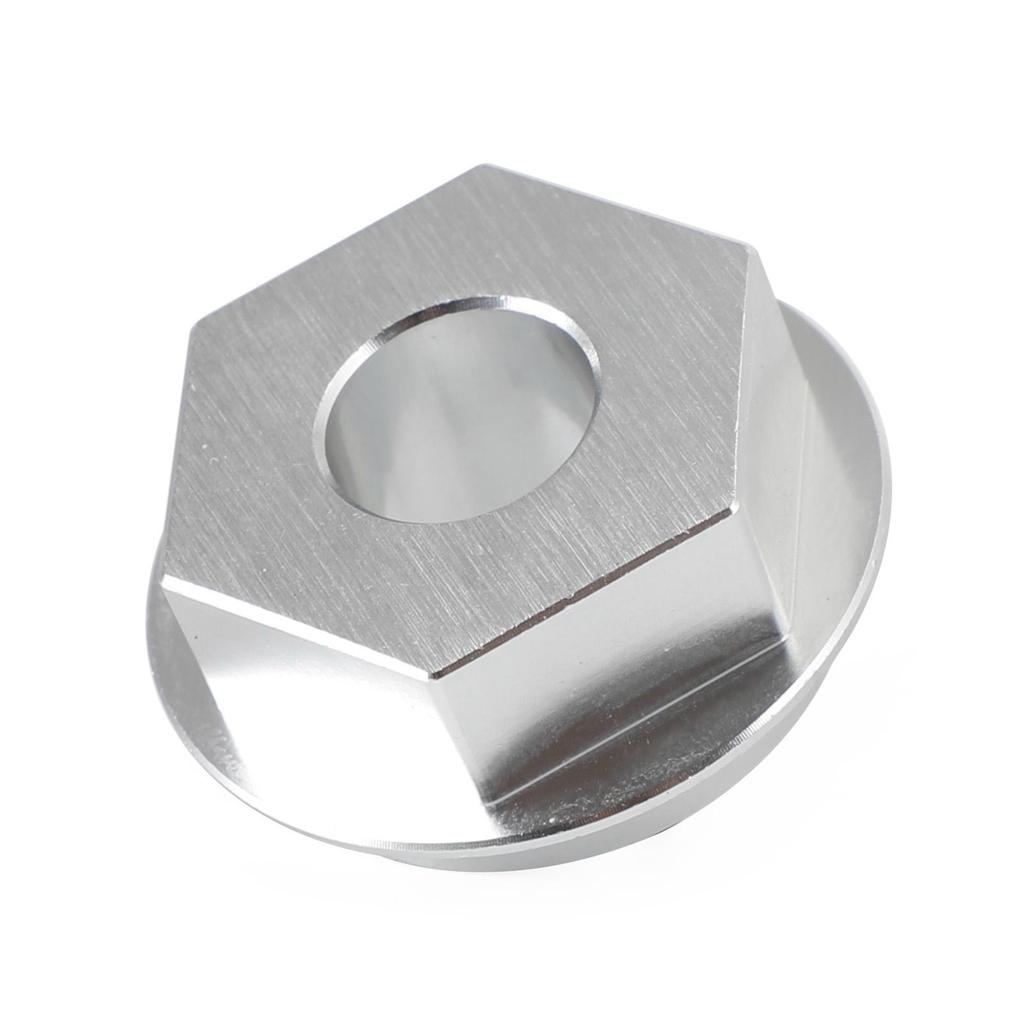

Then we have a bearing housing driver, this is the tool on step 12 of the fox float x2 rebuild instructions. This is the same fit as fox tool number 398-00-887. This is used on the 2021 fox x2 shocks. It has 4 hardened steel pins and is CNC machined for a great fit. It has a 30mm hex that is plenty tall for a wrench or a crescent.
Then we have the REZI vice clamp. It includes the 1.25 inner air sleeve clamp , equivalent to fox part number 803-01-690 and the Rezi body clamp, equivalent of fox 803-01-545 . The rezi body clamp is only used in 2021 and the inner air sleeve clamp will fit all fox shocks. The rezi body side of the clamp we left plenty of clearance so you end up with 170 degrees of working room. Clunky clamps can be as little as 90 deprees.
Last we have a cartidge cap tools. They have 4 hardened pins that fit both redand blue caps for the 2021 dhx2 and X2 shock only. One has has a 3/8" square drive, the other will fit a 5/8 or 16mm socket. It is the same fit as fox tool number 398-00-882 and 398-00-881
Shock is NOT included, just the tool. We have several listing of these tools individually or in small sets.
