This charging device with 1.77inch clear definition display screen, which could real-time monitor the subtle changes in voltage, current and power during charging. Dash cable detection able to read dash cable chip information, easy get wire informations. Built-in the calculation formula of battery capacity, to conveniently and fastly calculate the charging efficiency and capacity of the target object. Compatible with USB, TYPE-C, MICRO interfaces, support various quick charging protocols.
Features :
6-digit Display : With high precise, 1.77inch clear definition display screen, the data is clearly at a glance.
High Precise : The maximum resolution of the display is 0.00001, which could real-time monitor the subtle changes in voltage, current and power during charging.
Wire Detection : Dash cable detection able to read dash cable chip information, easy get wire informations.
Cable Internal Resistance Measurement : Two-step quick measurement of wire resistance with constant current load.
Data Record Function : There are totally 10 groups of data can be recorded intelligently.
Battery Capacity Calculation : Built-in the calculation formula of battery capacity, to conveniently and fastly calculate the charging efficiency and capacity of the target object.
Four Curves Design : Four curves of voltage current curve, D D-voltage curve, offline record curve, power ripple curve (ac coupling ) to meet various needs.
Gravities Sensors : Auto flip, equipped with gravities sensors, which supports 180 degrees and 360 degrees automatic flipping (only the simple interface supports 360 degrees ).
Multi-port Compatible : Compatible with USB, TYPE-C, MICRO interfaces, support various quick charging protocols.
BT Version (Optional ) : PC host BT APP driver-free installation, data management, BT APP can be viewed synchronously, and over-voltage and over-current alarms can be set.
Specifications :

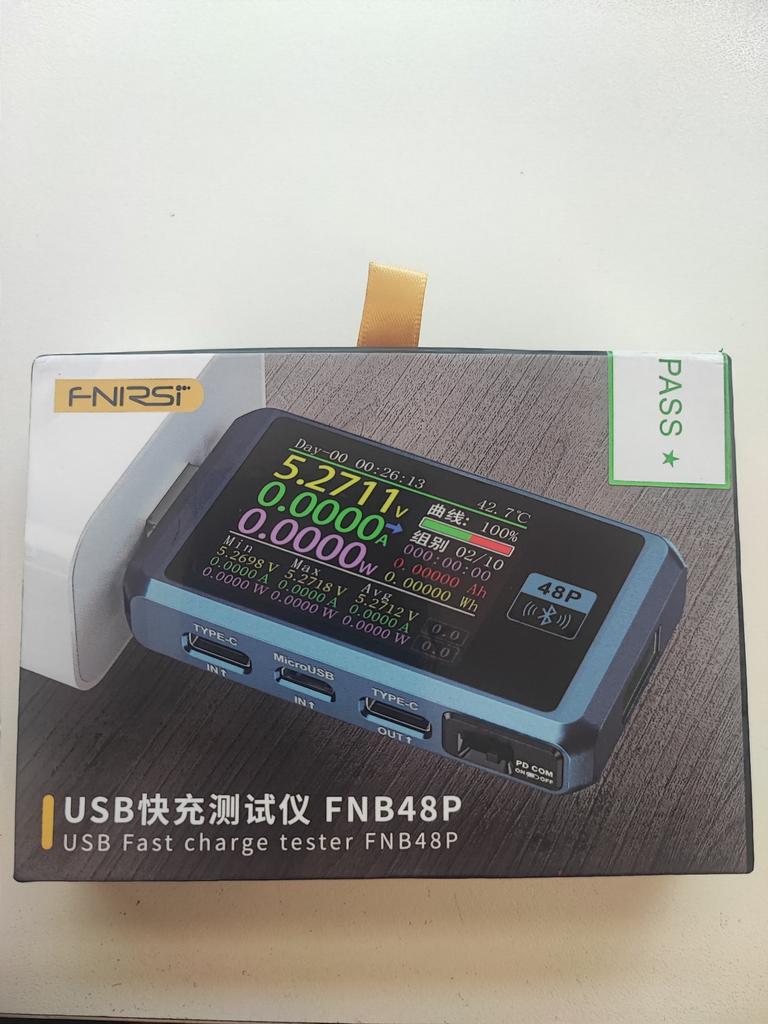

Name : Charging Device
Material : metal
Type : common version, BT version (optional )
Monitor voltage : 4-24V, 0.00001V, +/- (0.2%+2
Monitor current : 0-6.5A, 0.00001A, +/- (0.5%+2 )
Monitor power : 0-156W, 0.00001W, +/- (0.5%+2 )
Load equivalent internal resistance : 0-9999.9 Ohm , 0.0001 Ohm , +/- (0.5%+2 )
D+/D-voltage : 0-3.3V, 0.001V, +/- (1.0%+2 )
Equipment temperature : 1 celsius ( +/- (1.2%+3 ) )/1 Fahrenheit ( +/- (1.2%+4 ) )
Capacity : 0-9999.99Ah, 0.00001Ah
Energy used : 0-9999.99Wh, 0.00001Wh
Cable resistance : 0-9999.9 Ohm , 0.0001 Ohm
Operation hours : 99d23h59m59s, 1s
Record time : 999h59m59s, 1s?
Item size : 77 * 39 * 14mm / 3.03 * 1.54 * 0.55in
Package size : 100 * 50 * 30mm / 3.94 * 1.97 * 1.18in
Package weight : 200g / 7.05ounce
Packing List :
1 * Charging Device
